Nylon complete equipment


Capacity: Suitable for the range of 230 ~ 2100DTEX, process production speed of 2550 ~ 3000m/min

It is suitable for the production of nylon 6 and nylon 66 industrial silk by one-step drawing and winding process of slice melting spinning.

Viscose filament continuous spinning machine set spinning, drawing, regeneration, water washing, sizing, drying, seven winding process as a whole, has the advantages of novel structure, beautiful appearance, high spinning speed, large package, no joint, less hair silk, convenient operation, reliable operation, high efficiency, low consumption, safety and environmental protection advantages, is a new kind of viscose filament current domestic ideal of continuous spinning machine.


Key unit machine

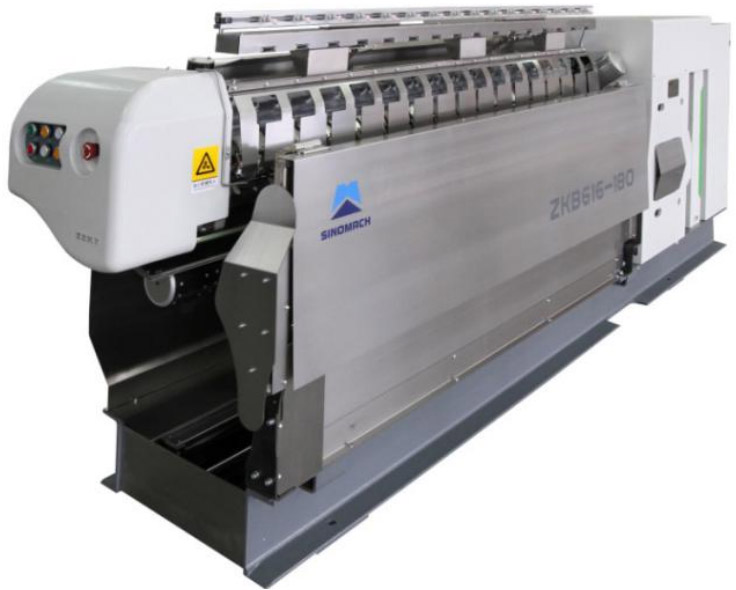

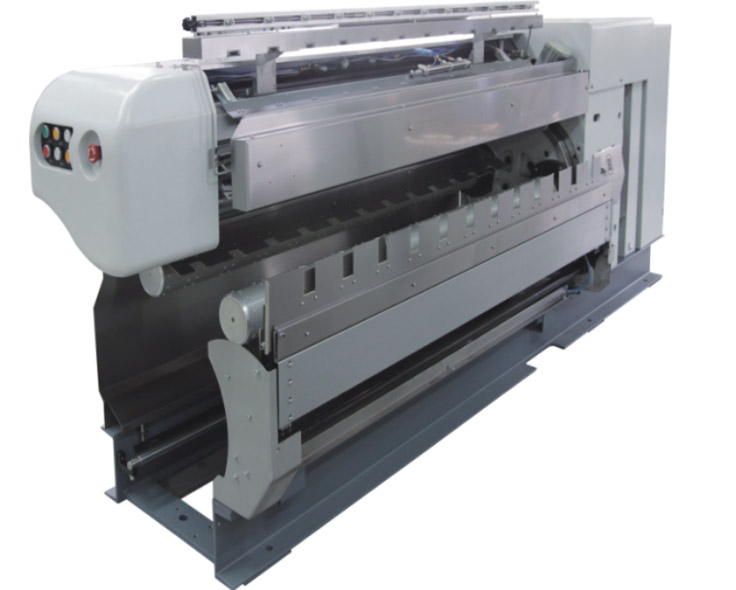

Winder


ZWB double rotor winding head and ZWT CAM slide shuttle winding head main features:

1.1 Knapsack control cabinet: strong anti-interference ability, saving construction and cable procurement costs.

1.2 Continuous contact pressure control: according to different spinning          varieties, the appropriate pressure curve is set by the upper computer.

1.3 Multi-section precision winding: the silk cake has good shape and high passing rate.

1.4 Active press roller: effectively protect the quality of bottom silk, and expand the applicability of lok spinning silk varieties.

1.5 Switching: servo system is adopted to control winding switching, which is stable and reliable.

1.6 Whole machine porcelain parts: imported brand, forming plate for the overall ceramic material.

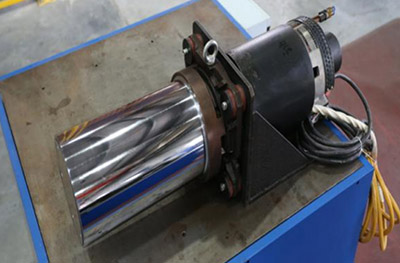

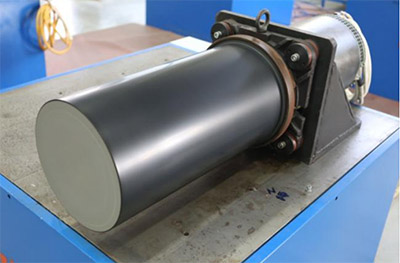

Ceramics HGR


Ceramics HGR

TK series HGR, SR using point induction heating, using heat pipe technology, hot roller working area surface temperature uniform. The hot roller is driven by permanent magnet synchronous motor to accurately control the speed. It runs smoothly and reliably under high speed and high temperature conditions, and can meet the requirements of polyester, nylon, polypropylene and composite silk, etc. The spinning size range is 40-800Dtex.

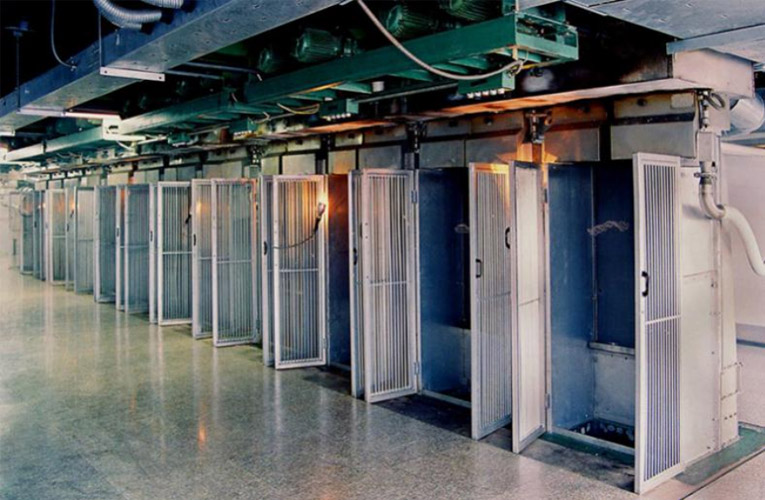

Spinning beam

Spinning beam internal temperature fields are uniform. Spinning beam insulation is compund insulation type,it is energy saving and environmental. Spinning pack is bottom mounted to prevent from stack effect.
